Popis produktu

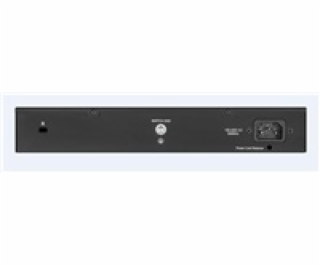

D-Link GO-SW-24G/E 24-Port GIGABIT EASY DESKTOP SWITCH

- 16-Port Gigabit Switch
- Auto MDI.MDIZ crossover for all ports
- Full/half-duplex for Ethernet / Fast Ethernet speeds
- Plug-and-play installation
- Energy Star Level V qualified
- D-Link Green (Automatic port powerdown for unused ports)


.................................................................................................

Physical
16 or 24 Gigabit Ethernet ports for fast network speeds
Industry-first plastic case for better heat dissipation and a compact size
Fanless design for silent operation

Performance
IEEE 802.3x Flow Control
Auto MDI/MDI-X crossover for all ports
Full/half-duplex for Ethernet/Fast Ethernet speeds
Supports 9,216 Bytes Jumbo Frames

Energy Efficiency
Innovative D-Link Green Ethernet Technology conserves energy
Link status detection reduces power usage
Cable length detection uses energy more efficiently
802.3az EEE hardware implementation reduces power consumption significantly
RoHS compliant

Easy Installation
Plug-and-play installation saves you time

Technical Specifications

General
Number of Ports
GO-SW-16G - Sixteen 10/100/1000 Gigabit ports
GO-SW-24G - Twenty-four 10/100/1000 Gigabit ports

Standards
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control

Data Tranfer Rates
Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Gigabit Ethernet:
2000 Mbps (full duplex)
Network Cables
10BASE-T:
UTP CAT 3, 4, 5/5e (100 m max)
EIA/TIA-586 100-ohm STP (100 m max)
100BASE-TX, 1000BASE-T:
UTP CAT 5/5e (100 m max)
EIA/TIA-568 100-ohm STP (100 m max)

Functionality

D-Link Green Features
IEEE 802.3az Energy Efficient Ethernet (EEE)
Link status detection power saving
Cable length detection power saving
RoHS Compliance

LAN Features
Back pressure at half-duplex operation
Auto MDI/MDIX
Wire speed reception and transmission
Store-and-Forward switching method
8K MAC addresses
2 Mbits RAM for data buffering
Jumbo Frames: 9216 Bytes
Switching Capacity
GO-SW-16G - 32 Gbps
GO-SW-24G - 48 Gbps

Port Packet Filtering
10M: 14,880 pps
100M: 148,800 pps
1000M: 1,488,000 pps

Physical

LEDs
Power LED
GO-SW-16G - 16 Link/Activity/Speed LEDs (one per port)
GO-SW-24G - 24 Link/Activity/Speed LEDs (one per port)

Power Inputs
GO-SW-16G - Switching 12V/1A level V power adapter
GO-SW-24G - Switching 12V/1.5A level V power adapter

Power Consumption
Power on (standby):
GO-SW-16G - AC input: 2.64 Watts
GO-SW-24G - AC input: 4.94 Watts
Power max.:
GO-SW-16G - AC input: 9.00 Watts
GO-SW-24G - AC input: 15.7 Watts

Heat Dissipation
Power on (Standby):
GO-SW-16G - AC input: 9.01 BTU/h
GO-SW-24G - AC input: 16.86 BTU/h
Power max.:
GO-SW-16G - AC input: 30.717 BTU/h
GO-SW-24G - AC input: 53.58 BTU/h

MTBF
GO-SW-16G - 319,267 hours
GO-SW-24G – 336,072 hours

Dimensions
GO-SW-16G - 231 x 158 x 46 mm (9.1 x 6.2 x 1.8 inches)
GO-SW-24G - 257 x 178 x 46 mm (10.1 x 7.0 x 1.8 inches)

Weight
GO-SW-16G - 0.58 kg (1.28 pounds)
GO-SW-24G0.76 kg (1.68 pounds)

Operating Temperature
0 to 40 °C (32 to 104 °F)

Storage Temperature
-10 to 70 °C (14 to 158 °F)

Humidity
5% to 90% non-condensing

Certifications
FCC Class A
ICES-003 Class A
CE Class A
C-Tick Class A
CB
cUL

---
