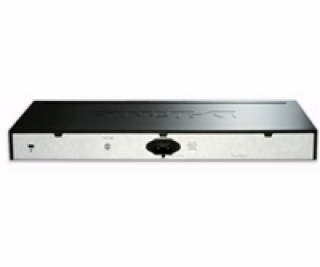

D-Link DGS-1510-28P POE Stackable SmartPro Switch 24xGiga+2xSFP+2x10G SFP+ ports

- 24 x 10/100/1000Mbps Auto-Negotiating Ports
- 2 x Mini-GBIC SFP ports
- 2 x 10G SFP+ ports
- Physical Stacking up to 6 units per stack. Stacking Bandwidth of 40Gb. Topology Linear or Ring.
- Support IEEE 802.3af and 802.3at (Support legacy mode)
- Up to 15.4W per port (PoE), Up to 30W per port (PoE+)
- 193W total PoE power budget
- Auto discover the connection of PD and immediately provides power
- AT: Auto disable port if the output power is over 31.2W(+/-2%)
- AF: Auto disable port if the output power is over 16.2W(+/-2%)
- Auto disable port if the port overload detection range (ICUT parameter) is 50V~57V.
- D-Link Green 3.0, 802.3az
- Virtual stacking
- Static route
- IPv6 Management/Ready Logo
- Half-/Full-Duplex, auto-negotiation, Auto MDI/MDIX
- IEEE 802.3x Flow Control
- 802.3ad Link Aggregation
- Asymmetric VLAN, Auto Voice VLAN, GVRP
- 802.1p priority queues
- MAC/IP filtering
- MAC/IP-based ACL
- 802.1X port-base Access Control, Port Security, traffic segmentation
- D-Link Safequare Engine
- Smart Console Utility, web based management, compact CLI
- D-View 6.0 support
- 19" Rackmount Installation

General
Port Standards & Functions
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
802.3ae 10 GbE
IEEE 802.3x Flow Control for Full-Duplex Mode
Auto-negotiation
Number of Ports
DGS-1510-20 - 16 10/100/1000 Mbps, 2 Gigabit SFP, 2 10G SFP+
DGS-1510-28 - 24 10/100/1000 Mbps, 2 Gigabit SFP, 2 10G SFP+
DGS-1510-28P - 24 10/100/1000 Mbps PoE capable, 2 Gigabit SFP, 2 10G SFP+
DGS-1510-52 - 48 10/100/1000 Mbps, 2 Gigabit SFP, 2 10G SFP+
Network Cables
UTP Cat. 5, Cat. 5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex
Full/half duplex for 10/100 Mbps and Gigabit speed
Media Interface Exchange
Auto or configurable MDI/MDIX
Performance
Switching Capacity
DGS-1510-20 - 76 Gbps
DGS-1510-28 - 92 Gbps
DGS-1510-28P - 92 Gbps
DGS-1510-52 - 140 Gbps
Transmission Method
Store-and-forward
MAC Address Table
16,000 entries per device
MAC Address Update
Up to 512 static MAC entries
Enable/disable auto-learning of MAC addresses
Maximum 64 bytes Packet Forwarding Rate
DGS-1510-20 - 56.54 Mpps
DGS-1510-28 - 68.45 Mpps
DGS-1510-28P - 68.45 Mpps
DGS-1510-52 - 104.16 Mpps
Packet Buffer Memory
DGS-1510-20/28/28P - 1.5 MB per device
DGS-1510-52 - 3 MB per device

PoE (DGS-1210-28P only)
PoE Standard
IEEE 802.3af, 802.3at
PoE Capable Ports
Ports 1 to 24: Up to 30 W
PoE Power Budget
Max. 193 W
Physical & Environment
AC Input
100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption
DGS-1510-20 - 20.3 W
DGS-1510-28 - 24 W
DGS-1510-28P – 238.7 W (PoE on), 29 W (PoE off)
DGS-1510-52 - 38.4 W
Standby Power Consumption
DGS-1510-20 - 12.2 W
DGS-1510-28 - 15.2 W
DGS-1510-28P -21 W
DGS-1510-52 - 27.6 W
Smart Fan Quantity
DGS-1510-20/28 – 1
DGS-1510-28P/52 – 2
Acoustics
DGS-1510-20 - 43.8 dB(A)
DGS-1510-28 - 47.5 dB(A)
DGS-1510-28P – 46.4 dB(A)
DGS-1510-52 - 44.2 dB(A)
Heat Dissipation
DGS-1510-20 - 41.602 BTU/hr
DGS-1510-28 - 72.292 BTU/hr
DGS-1510-28P – 813.967 BTU/hr
DGS-1510-52 - 130.944 BTU/hr
Operation Temperature
-5 to 50 °C (23 to 122 °F)
Storage Temperature
-20 to 70°C (-4 to 158 °F)
Operation Humidity
0% to 95% non-condensing
Storage Humidity
0% to 95% non-condensing
Dimensions
DGS-1510-20 - 280 x 180 x 44 mm (11 x 7.09 x 1.73 inches)
DGS-1510-28 - 440 x 210 x 44 mm (17.36 x 8.26 x 1.73 inches)
DGS-1510-28P - 440 x 250 x 44 mm (17.36 x 9.84 x 1.73 inches)
DGS-1510-52 - 440 x 210 x 44 mm (17.36 x 8.26 x 1.73 inches)
Weight
DGS-1510-20 - 1.24 kg
DGS-1510-28 - 2.00 kg
DGS-1510-28P – 2.54 kg
DGS-1510-52 - 2.40 kg
Diagnostic LEDs
Power/Stacking ID/Fan (per device)
Power/Stacking ID/Fan Error/PoE Push Button (per device) (for DGS-1210-28P only)
Link/Activity/Speed (per 10/100/1000 Mbps port)
Link/Activity/Speed/PoE Mode (per 10/100/1000 Mbps port) (for DGS-1210-28P only)
Link/Activity/Speed (per Gigabit SFP port)
Link/Activity/Speed (per 10G SFP+ port)
Certifications
CE
FCC
C-Tick
VCCI
BSMI
CCC
Safety
cUL
CB
Software Features
Stackability
Virtual Stacking Support
D-Link Single IP Management
Up to 32 devices per virtual stack
Up to 20G stacking bandwidth
Physical Stacking
Supports Duplex Chain/Ring topology
Up to 40G stacking bandwidth full duplex
Up to 6 units per stack
L2 Features
MAC Address Table: 16K
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Jumbo Frame up to 9000 Bytes
IGMP Snooping
IGMP v1/v2 Snooping
IGMP v3 awareness
Supports 512 IGMP groups
Supports 128 static multicast addresses
IGMP per VLAN
Supports IGMP Snooping Querier
Host-based IGMP Snooping Fast Leave
MLD Snooping
Supports MLD v1/v2 awareness
Supports 512 groups
Supports 128 Static Multicast Addresses
Per VLAN MLD Snooping
Host-Based MLD Fast Leave
MLD Snooping Querier
Spanning Tree Protocol
802.1D STP
802.1w RSTP
802.1s MSTP
Loopback Detection
802.3ad Link Aggregation
Max. 32 groups per device/8 ports per group
Port Mirroring
Support 4 mirroring groups
One-to-One, Many-to-One
Supports Mirroring for Tx/Rx/Both
Multicast Filtering
Forwards all unregistered groups
Filters all unregistered groups
LLDP, LLDP-MED
VLAN
802.1Q Tagged VLAN
4K VLAN Groups
Configurable VID: 0~4094
Asymmetric VLAN
Auto Voice VLAN
Auto Surveillance VLAN
Quality of Service (QoS)
802.1p Quality of Service
Queue Handling
Strict
Weighted Round Robin (WRR)
8 queues per port
Bandwidth Control
Port-based (Ingress/Egress, min. granularity for 10/100/1000Base-T ports is 64 Kb/s)
CoS based on
802.1p priority
VLAN
MAC address
Ether type
IP address
DSCP
Protocol type
TCP/UDP port number
DSCP of IPv6 Traffic Class
IPv6 flow label
L3 Features
ARP
256 Static ARP
Supports Gratuitous ARP
IPv6 Neighbour Discovery (ND)
Default Routing
Static Routing
64 IPv4 Static Route Entries
32 IPv6 Static Route Entries
Access Control List (ACL)
ACL based on
802.1p priority
VLAN
MAC address
Ether type
IP address
DSCP
Protocol type
TCP/UDP port number
DSCP of IPv6 Traffic Class
IPv6 flow label
ACL Actions
Permit
Deny
Max. 256 access list
Max. 768 rules
Single or multiple ports (each rule)
Time-based ACL
ACL Statistics
Security
Port Security
Supports up to 128 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
Dynamic ARP Inspection
Static MAC
D-Link Safeguard Engine
DHCP Server Screening
ARP Spoofing Prevention
Max. 64 entries
SSH
Supports v02
Supports IPv4/IPv6
SSL
Supports v1/v2/v3
Supports IPv4/IPv6
Traffic Segmentation
IP-MAC-Port Binding
DHCP snooping
IP Source Guard
Dynamic ARP inspection
DHCPv6 Guard
RA Guard
IPv6 Snooping
IPv6 source guard
DoS Attack Prevention
AAA
Compound Authentication
802.1X Port and MAC-based Authentication
Supports RADIUS and Local Server
Supports EAP, OTP, TLS, TTLS, PEAP
Web-based Access Control (WAC)
Port-based Access Control
Host-based Access Control
Dynamic VLAN Assignment
MAC-based Access Control (MAC)
Port-based Access Control
Host-based Access Control
Dynamic VLAN Assignment
Japan Web-based Access Control (JWAC)
Port-based Access Control
Host-based Access Control
Dynamic VLAN Assignment
OAM
Cable Diagnostics
Factory Reset
Management
CLI
Telnet Server
TFTP Client
IPv6 Neighbor Discovery
Configurable MDI/MDIX
SNMP
Supports v1, v2c, v3
SNMP Trap
System Log
Max. 10,000 log entries
DHCP Client
D-Link Network Assistant support
SNTP
ICMPv6
IPv4/v6 Dual Stack
DHCP Auto Configuration
RMON v1
D-Link Green 3.0 Technology
Power Saving by:
Link Status
LED or Port Shutoff
System Hibernation mode
Time-based PoE (DGS-1510-28P only)

---
