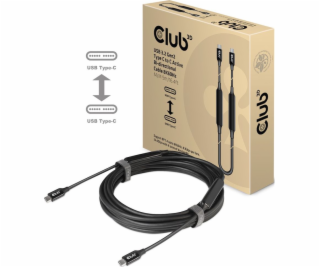

USB 3.2 Gen2 Type C to C Active Bi-directional Cable 8K60Hz M/M 5m/16.4ft
The Club 3D CAC-1535 is an USB Type C to USB Type C Bi-directional Active Cable with a Re-timer chipset for enhancing Video, Data and Power that reaches up to 5 meters / 16.40ft . For video its compatible with DP1.4 standards with a theoretical resolution of up to 8K@60Hz . For data it is compatible with USB3.2 Gen 2 with a maximum of 10Gbps of data transmission and for power it is capable of delivering a max of 60W (20V/3A) PD Charging.
This cable combines video,data and power functions for connecting USB Type C PC or mobile device to a USB Type C display/VR/HardDrive/ Dock/PD charger. In addition this cable is bidirectional which makes it simple to use. Please make sure that the devices connected support DisplayPort™ Alt Mode Functions.

Supports USB Type C male to male Bi-directional transmission
Support max 5m/16.40ft transmission distance with stable signal
Support DP 1.4 with Max theoretical resolution up to 8K/60Hz. 8.1Gbps per lane, 32.4Gbps with 4 lanes of bandwidth
Compatible with USB 3.2 Gen2 with a maximum of 10Gbps data transmission, downward compatible with lower versions (USB 3.1/USB3.0/USB2.0)
Supports a maximum of 60W (20V/3A) PD Charging two way charging, the product supports positive and negative connections, supports hot plugging.
Offers a perfect solution for VR Gaming
Built in signal enhanced Re-timer chip and E-Mark chipfor enhancing functions over longer distance than a passive USB C cable and protecting your devices while PD charging.


TECHNICAL SPECIFICATIONS



OS Support
All


In the box
USB 3.2 Gen2 Type C to C Active Bi-directional Cable 8K60Hz M/M 5m/16.4ft


Available Interfaces
Input: USB 3.2 Gen2 Type C Male Output: USB 3.2 Gen2 Type C Male


Box size
21 x 21 x 3.5 cm 8.27 x 8.27 x 1.38 inch


Output Cable length approx.
5 meter / 16.40 feet


Connector dimensions
USB C: 28 x 12.5 x 8 mm / 1.10 x 0.49 x 0.35 inch Active units: 83 x 15 x 9 mm / 3.27 x 0.59 x 0.35 inch


Cable Weight
282 gr / 9.95 oz


Box Weight
70 gr / 2.47 oz


LDPE Bag Weight
9 gr / 0.32 oz


Total Weight
362 gr / 12.77 oz

---
