Popis produktu

Pilový kotouč - průměr (mm): 216
Pilový kotouč - průměr vrtání (mm): 23
Počet zubů: 40
Rukojeť: ano
Funkce pokosu: ano
Funkce náklonu: ano
Laserové navádění: ne
Výkon (Watt): 1100
Napětí (V): 220 - 240
Typ: Kapovací a pokosová pila
Způsob provozu: Síť
Celková délka (mm): 490
Barva: zelená / stříbrná
Materiál: hliník
Šířka (cm): 46,3
Výška (cm): 49,0
Hloubka (cm): 47,7
Hmotnost (kg): 8,7

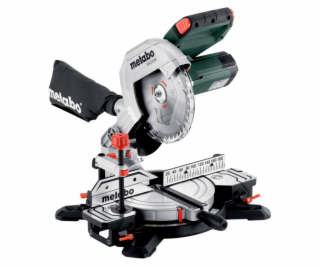

Metabo KS 216 M mitre saw, corded

Features:


Compact, accurate and easy to use mitre saw of the mobile M-class
Precision Cut Line (PCL): precise shadow cut line without readjustment by cleverly placed LED
Rotating table with quick, accurate adjustment of common angles using locking points
Saw blade tilt from -2 to 47°, allows undercuts
Sturdy construction made of aluminium die-cast for difficult requirements
Effective chip extraction through integrated chip catch funnel
Extendable table extensions, also removable, to support very long workpieces
Quick-clamping clamp for secure fixing of the workpiece from above or from the front
All scales and controls visible and intuitively operable from working position
Ergonomic grip areas for carrying with one or both hands


Technical data:


Dimensions: 477 x 463 x 490 mm
Support surface: 155 x 725 mm
Max. cutting width 90°/45°: 120 / 80 mm
Max. cutting depth 90°/45°: 60 / 45 mm
Cutting capacity 90°/90°: 120 x 60 mm
Cutting capacity 45°/45°: 80 x 45 mm
Rotating table adjustment left/right: 47 / 47 °
Saw blade tilt left/right: 47 / 2 °
Saw blade: 216 x 30 mm
Rated input power: 1100 W
Rated input power S1 100%: 1100 W
Rated input power S6 20%: 1350 W
No-load speed: 5000 /min
Speed at rated load: 3800 /min
Cutting speed: 57 m/s
Weight: 8.7 kg
Cable length: 2 m
Sound pressure level: 85 dB(A)
Sound power level (LwA): 98 dB(A)
Measurement uncertainty K: 3 dB(A)

---
