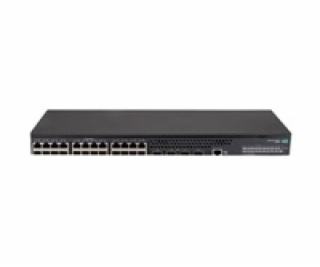

HPE Networking Comware 5140 24G 4SFP+ EI Switch 828AR RENEW




I/O ports and slots


24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only




4 SFP+ fixed 1000/10000 SFP+ ports




Additional ports and slots


1 RJ-45 serial console port




Physical characteristics


Dimensions


17.32(w) x 6.3(d) x 1.72(h) in (44 x 16 x 4.36 cm) (1U height)




Weight


5.5 lb (2.5 kg)




Memory and processor


512 MB SDRAM, 256 MB flash




Mounting and enclosure


Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately)




Performance


IPv6 Ready Certified





1000 Mb Latency


< 5 µs




10 Gbps Latency


< 3 µs




Throughput


95 Mpps




Routing/Switching capacity


128 Gbps




Routing table size


1024 entries




MAC address table size


16384 entries




Environment


Operating temperature


23°F to 113°F (-5°C to 45°C)




Operating relative humidity


10% to 90%, noncondensing




Non-operating/Storage temperature


-40°F to 158°F (-40°C to 70°C)




Non-operating/Storage relative humidity


5% to 95%, noncondensing




Acoustic


High-speed fan: 36.8 dB; ISO 7779




Electrical characteristics


Frequency


50/60 Hz




Maximum heat dissipation


64/88 BTU/hr (67.52/92.84 kJ/hr)




Voltage


100 - 240 VAC, rated




Current


2 A




Maximum power rating


24 W




Idle power


19 W




Notes:


- Idle power is the actual power consumption of the device with no ports connected.
- Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.




Safety


UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance










Emissions


FCC Part 15 Subpart B CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993




Immunity


Generic


EN 55024




ESD


EN300 386




Management


IMC - Intelligent Management Center; SmartMC; command-line interface; Web browser; SNMP Manager




Services


Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

---
