Popis produktu

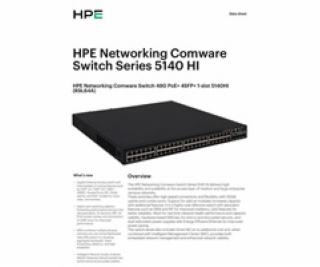

HPE FlexNetwork 5140 48G PoE+ 4SFP+ HI Switch R9L64A RENEW




I/O ports and slots


48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)




4 SFP+ 10GbE ports 1 port expansion module slot




Additional ports and slots


1 dual-personality (RJ-45 or mini-USB) serial console port
1 RJ-45 out-of-band management port
1 USB 2.0




Power supplies


2 power supply slots 1 minimum power supply required




Fan tray


Airflow direction is from side to back




Physical characteristics


Dimensions


17.32(w) x 18.11(d) x 1.71(h) in. (44.00 x 46.00 x 4.36 cm) (1U height)




Weight


≤9.6 kg




Memory and processor


2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash




Mounting and enclosure


Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardwareincluded)




Performance


1000 Mb Latency


< 5 µs




10 Gbps Latency


< 3 µs




Throughput


180 Mpps




Routing/Switching capacity


336 Gbps




Routing table size


8K




MAC address table size


32K




Environment


Operating temperature


23°F to 113°F (-5°C to 45°C)




Operating relative humidity


5% to 95%, noncondensing




Non-operating/Storage temperature


-40°F to 158°F (-40°C to 70°C)




Non-operating/Storage relative humidity


5% to 95%, noncondensing




Acoustic


Low-speed fan: 57.2 dB, High-speed fan: 68.9 dB; ISO 7779




Electrical characteristics


Frequency


50/60 Hz




Maximum heat dissipation


ranges from 112 BTU/hr to 5943 BTU/hr depending on power supply configuration




Voltage


100-240 VAC, rated (90-264 VAC, max)-48 to -60 VDC, rated (-36 to -72 VDC, max) (depending on power supply chosen)




Maximum power rating


1742 W (dual AC)




Idle power


40 W (dual AC)




PoE power


1440W (30W max PoE power per port)




Notes:


- Idle power is the actual power consumption of the device with no ports connected.
- Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated
- PoE+ power range is from 360W to 1440W. PoE+ power is the power supplied by the internal power supplies. It is dependent on the type and quantity of power supplies. Device supports 1 or 2 internal modular power supplies.




Safety


UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; RoHS Compliance; AS/NZS 60950-1; GB 4943; EAC (EurAsian Conformity Certification)




Emissions


ETSI EN300 386 V1.6.1 (2012-09); ETSI EN 300 386 V2.1.1 (2016-07); EN 55032:2015 CLASS A; CISPR 32:2015 CLASS A; AS/NZS CISPR 32:2015 CLASS A; EN 61000-3-2:2014; EN 61000-3-3:2013; FCC PART15 Subpart B CLASS A; ICES-003 Issue 7 CLASS A; ANSI C63.4-2014; VCCI-CISPR 32:2016 CLASS A




Generic


IEC 61000-4-1:2006;
IEC 61000-4-2:Ed2 2008;
IEC 61000-4-3:2020;
IEC 61000-4-3:2010;
IEC 61000-4-4:2004;
IEC 61000-4-4:2011;
IEC 61000-4-4:Ed3.0 2012;
IEC 61000-4-5:2014;
IEC 61000-4-5:2017;
IEC 61000-4-6:2013;
IEC 61000-4-6:2013 COR1:2015;
IEC 61000-4-8:2009;
IEC 61000-4-11:2004;
IEC 61000-4-11:2017;
IEC 61000-4-11:2020




ESD


Air 8KV; Con 6KV; Criteria B




Immunity


ETSI EN300 386 V1.6.1 (2012-09); ETSI EN 300 386 V2.1.1 (2016-07); EN 55035:2017; CISPR 35:2016;




Management


IMC-Intelligent Management Center; Smart MC, command-line interface; SNMP Manager




Services


Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

---
