Popis produktu

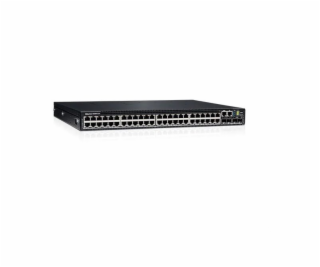

N3248TE-ON 48x1G 4x10G SFP+ 2x100G QSFP28 32GB 1xAC PSU IO/PS OS6 - Lifetime limited HW

Latest generation 1G Campus Access Switches

N3248TE-ON - 1RU, 48x1G RJ-45 with 802.3at (30W) PoE ports
400G Stacking with up to 12 members
10G Uplinks to aggregation
Ideal for Mid to Large Enterprise Campus networks, Retail deployments

Performance
Switch fabric capacity (full duplex): 88Gbps (N3208PX-ON); 528Gbps (N3224T-ON, N3224F-ON and N3224P-ON); 1080Gbps (N3224PX-ON); 576Gbps (N3248TE-ON and N3248P-ON); 1560Gbps (N3248X-ON and N3248PXE-ON)
Forwarding rate: 122Mpps (N3208PX-ON); 733Mpps (N3224T-ON, N3224F-ON and N3224P-ON); 1500Mpps (N3224PX-ON); 800Mpps (N3248TE-ON, N3248P-ON), 2167Mpps (N3248X-ON, N3248PXE-ON)

Power
Optional Power Supplies:
550W AC hot swappable with IO/PS airflow, adds redundancy to N3224T-ON, N3224F-ON, N3248TE-ON, N3248X-ON
550W AC hot swappable with PS/IO airflow, adds redundancy to N3224T-ON, N3248TE-ON, N3248X-ON
1050W AC hot swappable with IO/PS airflow, adds redundancy and/or extends PoE budget for N3224P-ON, N3248P-ON. Also used with MPS-1S shelf, MPS-3S Shelf
1600W AC hot swappable with IO/PS airflow, adds redundancy and/or extends PoE budget for N3224PX-ON, N3248PXE-ON. Also used with MPS-1S shelf, MPS-3S Shelf

Power Cords:
C15 to NEMA 5-15, 1.8M (N3208PX-ON only)
C13 to NEMA 5-15, 3M (all other N3200 models)
C13 to C14, 2M (all other N3200 models)

Ports
N3208PX-ON - 4x RJ45 10M/100M/1G/2.5G/5G 802.3bt Type-4 (up to 90W) PoE auto-sensing ports, 4x RJ45 10M/100M/1G 802.3bt Type-4 (up to 90W) PoE auto-sensing ports, 2x 10G SFP+ ports
N3224T-ON - 24x RJ45 10M/100M/1G auto-sensing ports, 4x 10G SFP+ ports
N3224F-ON - 24x 1G SFP, 4x 10G SFP+ ports
N3224P-ON - 24x RJ45 10M/100M/1G 802.3at (up to 30W) PoE auto-sensing ports, 4x 10G
SFP+ ports
N3224PX-ON - 24x RJ45 10M/100M/1G/2.5G/5G/10G 802.3bt Type-4 (up to 90W) PoE auto-sensing ports, 4x 25G SFP28 ports
N3248TE-ON - 48x RJ45 10M/100M/1G auto-sensing ports, 4x 10G SFP+ ports
N3248P-ON - 48x RJ45 10M/100M/1G 802.3at (up to 30W) PoE auto-sensing ports, 4x 10G SFP+ ports
N3248X-ON - 48x RJ45 10M/100M/1G/2.5G/5G/10G auto-sensing ports, 4x 25G SFP28 ports
N3248PXE-ON - 48x RJ45 10M/100M/1G/2.5G/5G/10G 802.3bt Type-4 (up to 90W) PoE auto-sensing ports, 4x 25G SFP28 ports

2 integrated rear 100GbE QSFP28 stacking ports (except N3208PX-ON)
Out-of-band management port (10/100/1000BASE-T)
USB (Type A) port for configuration via USB flash drive
USB (Type B) console port (USB to USB connector cable included)
RJ45 console port with RS232 signaling (RJ-45 to female DB-9 connector cable included)

Dimensions & Weight
N3208PX-ON - Height: 1.71 (43.44 mm) x Width: 11 (279.4 mm) x Depth: 12.28 (312 mm)
All other models - Height: 1.71 (43.44 mm) x Width: 17.09 (434.086 mm) x Depth: 15.75 (400.05 mm)

Security
RADIUS, TACACS+, 802.1x

Regulatory
Emissions & Safety
Australia/New Zealand: ACMA RCM Class A
Canada: ICES Class A; cUL
China: CCC Class A; NAL
Europe: CE Class A
Japan: VCCI Class A
USA: FCC Class A; NRTL UL; FDA 21 CFR 1040.10 and 1040.11
Eurasia Customs Union: EAC Germany: GS mark
Product meets EMC and safety standards in many countries inclusive of USA, Canada, EU, Japan, China.
For more country-specific regulatory information and approvals, please see your Dell EMC representative.
RoHS
Product meets RoHS compliance standards in many countries inclusive of USA, EU, China, and India. For more country-specific RoHS compliance information, please see your Dell EMC representative.
EU WEEE
EU Battery Directive REACH
Energy
Japan: JEL

Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment

Management
CLI, Web, SNMP

Other Switching
Open networking

Environmental
Power supply efficiency: 80% or better in all operating modes
Max. thermal output (BTU/hr): 2821 (N3208PX-ON), 686 (N3224T-ON), 764 (N3224F-ON), 3220 (N3224P-ON), 9344 (N3224PX-ON), 723 (N3248TE-ON), 5719 (N3248P-ON), 1637 (N3248X-ON), 18224 (N3248PXE-ON)
Power consumption max (watts): 827 (N3208PX-ON), 201 (N3224T-ON), 224 (N3224F-ON), 944 (N3224P-ON), 2740 (N3224PX-ON), 212 (N3248TE-ON), 1677 (N3248P-ON), 480 (N3248X-ON), 5344 (N3248PXE-ON)
Operating temperature: 32° to 113°F (0° to 45°C) Operating humidity: 95%
Storage temperature: –40° to 154°F (–40° to 67°C)
Storage relative humidity: 85%

---
