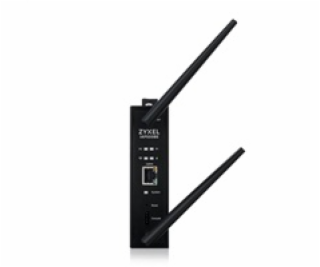

Zyxel IAP500BE, BE5000, Dual Radio 2x2 MU-MIMO, PoE+ (802.3at), Industrial AP, DIN Rail mounted Standalone/Nebula Cloud Managed, DC Power


Wireless
________________________________________
Standard
IEEE802.11 be/ax/ac/n/g/b/a
MIMO
MU-MIMO
Wireless speed
2.4GHz: 688Mbps
5GHz: 4324Mbps
Frequency band
2.4GHz:
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz

5GHz:
USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth
20-, 40- ,80-, 160- and 240-MHz
Conducted typical transmit output power*1
US (2.4GHz/5GHz):
25/26dBm

EU (2.4GHz/5GHz):
16/26dBm
RF Design
________________________________________
Antenna type
External Antenna
Antenna gain
2.4GHz:
2 dBi, 2x2:2SS

5GHz:
3 dBi, 2x2:2SS
Minimum receive sensitivity
Min. Rx sensitivity up to -99 dBm
WLAN Features
________________________________________
Band steering
Yes
WDS/Smart Mesh*2
Yes
Wireless Bridge
Yes
Fast roaming
Pre-authentication, PMK caching and 802.11r/k/v
DCS
Yes
Load balancing
Yes
Advanced cellular coexistence
Yes
Security
________________________________________
Encryption
WEP
WPA
WPA2
WPA3
Authentication
IEEE 802.1X/ RADIUS authentication
Access management
L2-isolation
MAC filtering
Rogue AP detection
Networking
________________________________________
IPv6
Yes
VLANs
Yes
WMM
Yes
U-APSD
Yes
Management
________________________________________
Operating mode
Nebula cloud-managed
Controller-managed
Standalone
Web UI/CLI
Yes
SNMP
Yes
Physical Specifications
________________________________________
Item
Dimensions (WxDxH)(mm/in.)
125 x 130 x 35 / 4.92 x 5.12 x 1.38 (without Antenna)
Weight (g/lb.)
646 / 1.42
Packing
Dimensions (WxDxH)(mm/in.)
160 x 180 x 50 / 6.30 x 7.09 x 1.96
Weight (g/lb.)
864 / 1.90
Included accessories
Din rail mount
Two 2.4GHz/5GHz detachable antennas
MTBF (hr)
631,165
Physical Interfaces
________________________________________
Ethernet port
1 x 1/2.5GbE LAN
Power
PoE (802.3at): power draw 24W
DC input: 12V-48V redundant dual input
PoE modes
IEEE 802.3af: Not supported
IEEE 802.3at: Unrestricted
IEEE 802.3bt: Unrestricted
Environmental Specifications
________________________________________
Operating
Temperature
-25°C to 65°C/-13°F to 149°F
Humidity
10% to 90% (non-condensing)
Storage
Temperature
-40°C to 70°C / -40°F to 158°F
Humidity
10% to 90% (non-condensing)
Certifications
________________________________________
Radio
FCC Part 15C
FCC Part 15E
FCC Part 2.1091
ETSI EN 300 328
EN 301 893
Draft EN 303 687
EN 50385
EN 50665
EN IEC 62311
LP0002
EMC
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55032
EN55035
EN61000-3-2/-3
EN60601-1-2
BSMI CNS15936
Safety
EN 62368-1
IEC 62368-1
BSMI CNS15598-1

---
