Popis produktu

Horní strana: 1 x 240 mm, 1 x 120 mm / 1 x 280 mm, 1 x 140 mm
Horní strana: 2x 120 mm / 2x 140 mm
Typ pouzdra: Mini-Tower
Mechanika 2,5 : 2x
PCIe rozšiřující sloty: 3x
Boční díl: Síťka
Síťový adaptér: volitelný
Max. výška ventilátoru CPU (mm): 68
Max. délka grafické karty (mm): 360
Nainstalované ventilátory: ne
Mini-ITX: ano
USB-A: 2x USB-A 3.2 Gen 1 (5 GBit/s)
USB-C: 1x USB-C 3.2 Gen 2 (10 GBit/s)
Kombinovaný audio konektor: 1x
Barva: zelená
Materiál: Ocel / plast
Šířka (cm): 17,9
Výška (cm): 29,4
Hloubka (cm): 39,1

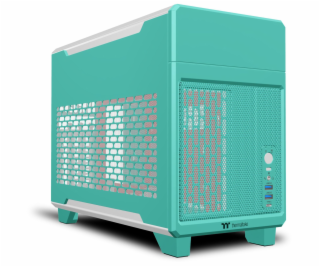

Thermaltake TR100 Mint Strawberry

Size Down, Power Up
The TR100 Mini Tower Chassis is a compact, dual-chamber, Mini-ITX case that is designed for those who demand performance and portability. The dual-chamber design positions the mini-ITX motherboard and SFX PSU in the right chamber, with the graphics card in the left, connected via a PCIe 4.0 riser cable. It supports two 120mm/140mm top fans and up to a 280mm AIO for cooling, plus two 2.5” SSDs, one in each chamber. All panels are removable and well-ventilated for optimal cooling and an easier build. To make it more visual appealing, a separately sold 3.9 LCD Screen Kit is also an option. Additionally, the separately sold suitcase allows users to carry the PC case and a complete gaming setup with them!

Compact Design
The TR100 is an 18.4-liter SFF (Small Form Factor) chassis that offers a compact footprint, delivering exceptional flexibility for both work and gaming setups.

Superior GPU Support
The TR100 supports graphics cards up to 360mm in length and 70mm in thickness. The detachable rear PCI-E panel and integrated GPU holder make it easy to install and secure large, thick GPUs in a portable gaming system.

Efficient Cooling Solutions
The TR100 supports up to a 240/280mm radiator (max. thickness 53mm) on the top bracket for CPU cooling. For air cooling, it accommodates a CPU cooler up to 68mm in height and two 120/140mm fans on the top.

Redefining Portable Gaming
More than just a case, the TR100 is a complete, travel-ready gaming solution. Whether you re traveling for business or pleasure, editing video or designing graphics, playing games or using VR, there s no need to sacrifice performance or leave your gaming experience behind! (The suitcase is sold separately)

TT Travel Trunk for TR100 (sold separately)
The lightweight and durable luggage is designed to carry the PC case and a full gaming setup, including a VR headset, portable monitor, keyboard, and mouse. (The suitcase is sold separately)

Easy Access with Removable Panels
The TR100 s modular design allows you detach almost every panel. The side panels are secured with magnets, while the top and bottom panels are held by spring-loaded captive screws.

SFX PSU Support
The TR100 features a removable PSU bracket and two sets of screw holes, supporting both SFX and SFX-L PSUs for higher wattage needs.

Visually Pleasing, Totally Interactive
Maximize your TR100’s visual effects by upgrading it with the LCD Screen Kit (sold separately). The 3.9” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus software. Through the TT RGB Plus, the 3.9 LCD display presents real-time information and plays JPG and GIF files with 128*480 resolution. What’s more is users can even show the time and weather information on the display, bringing great visual aesthetics and highly customizable functions to your build.

Air Intake and Exhaust
Despite its compact size, the TR100 still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.

Perfect Dust Protection
There are filters at the top, front and side of the chassis to protect the system from dust.

Hardware Support and Cooling Solution
Despite its compact footprint, the TR100 still has good hardware support. It can support a CPU cooler with a maximum height of 68mm, a GPU with a maximum length of 360mm (and up to 70mm in width), a power supply with a length of up to 130mm, and two 2.5 SSDs. For cooling support, up to two 120mm/140mm fans or a 280mm all-in-one CPU cooler can be placed on top of the chassis for effective cooling.


Supported dimensions:

Power supply unit (PSU): Max. Length 130 mm
Graphics card (GPU): Max. Length 360 mm, max. width 70 mm
Motherboard: 6.7‘ x 6.7’ (Mini ITX)


Fan support (top side only): 2x 120 mm / 140 mm
Radiator support (top side only): 1x 120 mm / 140 mm / 240 mm / 280 mm
Storage support: up to two 2.5 SSDs, one in each chamber


Handy I/O Ports
The front I/O ports consist of: Power button, Reset button, 1x HD Audio, 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C

DMD: Dismantlable Modular Design
No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
