Popis produktu

Product SKUs

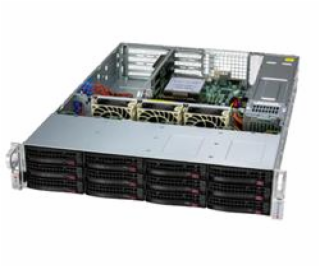

A+ Server  AS -2015SV-WTNRT







Motherboard


Super H13SVW-NT







Processor


CPU


Single processor(s)
AMD EPYC™ 8004 Series Processor




Core Count


Up to 64C/128T




Note


Supports up to 225W TDP CPUs (Air Cooled)









GPU


Max GPU Count


Up to 1 double-width or 2 single-width GPU(s)




Supported GPU


NVIDIA PCIe: T400, RTX 4000 Ada Generation
View GPU Options









System Memory


Memory


Slot Count: 6 DIMM slots
Max Memory (1DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM
View Memory Options









On-Board Devices


Chipset


System on Chip




Network Connectivity


2 RJ45 10GBASE-T with Broadcom® BCM57416
View AOC Options




NVMe


View NVMe Options









Input / Output


LAN


1 RJ45 1 GbE Dedicated IPMI LAN port(s)
2 RJ45 10 GBASE-T LAN port(s)




USB


4 port(s) (rear)




Video


1 VGA port(s)




Serial


1 COM port(s) (Rear)




TPM


1 TPM Onboard/port 80









System BIOS


BIOS Type


AMI 32MB SPI Flash EEPROM




BIOS Features


ACPI 6.4
SMBIOS 3.5 or later
UEFI 2.8
Plug and Play (PnP)
USB Keyboard support









Management


Software


SuperCloud Composer
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
SuperDoctor® 5
Super Diagnostics Offline
TAS: Supermicro Thin-Agent Service (TAS)
SAA(new!)




Power configurations


1U redundant 800W Titanium AC Power Supply









Security


Hardware


Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant




Features


Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown









PC Health Monitoring


FAN


Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors




Temperature


Monitoring for CPU and chassis environment
Thermal Control for fan connectors























Chassis


Form Factor


2U Rackmount




Model


CSE-826BTS-R000WNBP4









Dimensions and Weight


Height


3.5" (89 mm)




Width


17.2" (437 mm)




Depth


25.6" (650 mm)




Package


11.5" (H) x 26.5" (W) x 34" (D)




Weight


Gross Weight: 58 lbs (26.3 kg)
Net Weight: 34 lbs (15.4 kg)




Available Color


Black









Front Panel


LED


Device Activity
LAN 1 Activity
LAN 2 Activity
Power Failure LED
Power status
System information




Buttons


Power On/Off
System Reset









Expansion Slots


PCI-Express (PCIe) Configuration


Default

2 PCIe 5.0 x16 FHFL slot(s)
2 PCIe 5.0 x8 LP slot(s)


View AOC Options




M.2


2 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key)









Drive Bays / Storage


Drive Bays Configuration


Default: Total 12 bay(s)

12 front hot-swap 3.5" SATA drive bay(s)


Option A: Total 12 bay(s)

6 front hot-swap 3.5"/2.5" PCIe 5.0 NVMe*/SATA drive bay(s)
6 front hot-swap 3.5"/2.5" SATA drive bay(s)


Option B: Total 12 bay(s)

12 front hot-swap 2.5" SAS* drive bay(s)


(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
View Drive Options




M.2


2 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 2280/22110)
View M.2 Options









System Cooling


Fans


3 Heavy duty PWM 80x80x38mm Fan(s)









Power Supply










2x 800W Redundant Titanium Level (96%) power supplies




Dimension (WxHxL)
76 x 40 x 336 mm


AC Input
800W: 100-240Vac / 50-60Hz
800W: 200-240Vdc / 50-60Hz


+12V
Max: 66A / Min: 0A (100Vac-240Vac)
Max: 66A / Min: 0A (200Vdc-240Vdc)


5V SB
Max: 4A / Min: 0A


Output Type
Backplanes (gold finger)

---
