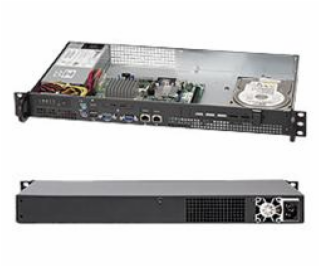

SUPERMICRO mini1U chassis Přední I/O, 1x 3,5 fixed HDD (nebo s MCP-220-00044-0N 2x2,5 ), 200W, pro Atom MB
SUPERMICRO mini1U chassis Přední I/O, 1x 3,5 fixed HDD (nebo s MCP-220-00044-0N 2x2,5 ), 200W, pro Atom MB
141 €
114,63 € bez DPH
Dostupnost: Nedostupné 🛈
Part no.: CSE-503L-200B
Kód produktu: 80361989
Výrobce: Supermicro
Popis produktu
Product SKUs
CSE-503L-200B SuperChassis 503L-200B
Form Factor
9.8 Mini 1U chassis support for maximum motherboard size: Micro-ATX 9.6 x 9.6
Processor Support
Intel® Atom™ processors
Dimensions
Height 1.7 (43 mm)
Width 17.2 (437 mm)
Depth 9.8 (249 mm)
Gross Weight 10 lbs (4.54 kg)
Packaging (W x H x L) 25.8 (655 mm) x 6.1 (155 mm) x 18.3 (465 mm)
Available Color Black
Expansion Slots
1x full-height half-length PCI expansion slot (Optional) (Riser Card Required)
Drive Bays
1 x 3.5 fixed drive bay
Or optional 2 x 2.5 Internal Drive
Or optional 1 x 2.5 Internal Drive Bay with 1x Full-height, Half-length PCI
SAS or enterprise SATA HDD only recommended
Front Panel
Buttons Power On/Off button
System Reset Button
LEDs 2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Ports Standard System I/O (Mouse, Keyboard, 2x USB Video, COM, LPT, LAN)
Operating Environment (System)
Operating Temperature Range 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range -40°C - 60°C (-40°F - 140°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Power Supply
1U 200W Multi-output power supply with 20pin, YM-5201D
Power Efficiency 82%
Total Output Power and Input 200W with Input 100 - 240Vac
AC Input Frequency 50-60Hz
Dimensions (L x W x H) 192.8 x 76.2 x 40.3 mm
Output Type 20pin ATX
-12V Max: 0.8A / Min: 0A
+12V Max: 15A / Min: 1A (100Vac - 240Vac)
+5V Max: 16AA / Min: 0.3A
+3.3V Max: 17A / Min: 0.5A
+5Vsb Max: 2A / Min: 0.1A
+12Vsb Max: NAA
Certification N/A
Regulatory (Power Supply)
Power Supply Safety / EMC CE/EMC
FCC class B
TUV/CB
UL/CUL
Popis produktu
Product SKUs
CSE-503L-200B SuperChassis 503L-200B
Form Factor
9.8 Mini 1U chassis support for maximum motherboard size: Micro-ATX 9.6 x 9.6
Processor Support
Intel® Atom™ processors
Dimensions
Height 1.7 (43 mm)
Width 17.2 (437 mm)
Depth 9.8 (249 mm)
Gross Weight 10 lbs (4.54 kg)
Packaging (W x H x L) 25.8 (655 mm) x 6.1 (155 mm) x 18.3 (465 mm)
Available Color Black
Expansion Slots
1x full-height half-length PCI expansion slot (Optional) (Riser Card Required)
Drive Bays
1 x 3.5 fixed drive bay
Or optional 2 x 2.5 Internal Drive
Or optional 1 x 2.5 Internal Drive Bay with 1x Full-height, Half-length PCI
SAS or enterprise SATA HDD only recommended
Front Panel
Buttons Power On/Off button
System Reset Button
LEDs 2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Ports Standard System I/O (Mouse, Keyboard, 2x USB Video, COM, LPT, LAN)
Operating Environment (System)
Operating Temperature Range 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range -40°C - 60°C (-40°F - 140°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Power Supply
1U 200W Multi-output power supply with 20pin, YM-5201D
Power Efficiency 82%
Total Output Power and Input 200W with Input 100 - 240Vac
AC Input Frequency 50-60Hz
Dimensions (L x W x H) 192.8 x 76.2 x 40.3 mm
Output Type 20pin ATX
-12V Max: 0.8A / Min: 0A
+12V Max: 15A / Min: 1A (100Vac - 240Vac)
+5V Max: 16AA / Min: 0.3A
+3.3V Max: 17A / Min: 0.5A
+5Vsb Max: 2A / Min: 0.1A
+12Vsb Max: NAA
Certification N/A
Regulatory (Power Supply)
Power Supply Safety / EMC CE/EMC
FCC class B
TUV/CB
UL/CUL
