Popis produktu

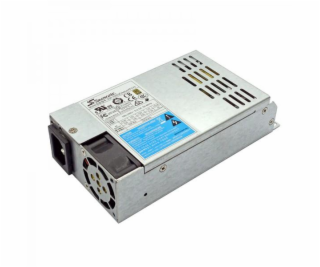

This is a Seasonic industrial power supply meeting important EMI, EMC and safety standards. This unit is ATX 12 V v.2.31 and EPS 12 V compliant with DC to DC converter design and important protection features. It features Active PFC (Power Factor Correction) circuit design and is 80 PLUS Gold efficiency rated, meaning that at 115 V AC input the unit can achieve up to 90 % efficiency at 50 % load. This industrial power supply is built with quality and reliability in mind.
OVERVIEW:



SUG
SUB
M1U


80PLUS
Gold
Bronze
Gold


Intel ATX 12 V v2.31 compliant
YES
YES
YES


EPS 12 V compliant
YES
YES
YES


Flex ATX v1.0 compliant
YES
YES
YES


Dimensions
150 mm (L) x 81.5 mm (W) x 40.5 mm (H)
150 mm (L) x 81.5 mm (W) x 40.5 mm (H)
190 mm (L) x 81.5 mm (W) x 40.6 mm (H)


DC to DC converter design
Yes
No
Yes


Forward converter circuit
No
YES
No


Fully modular cables
Yes
Yes
Yes


Semi modular cables
No
No
No


Fixed cables
No
No
No


40 mm double ball bearing fan
Yes
Yes
Yes


S3FC - including Fanless mode
No
Yes
Yes


S2FC - Smart and Silent Fan Control
Yes
No
No


Easy-swap connector design
Yes
Yes
Yes


Zero minimum load on 3.3 V rail
Yes
No
Yes


Short circuit protection on all outputs
Yes
Yes
Yes


Over voltage protection
Yes
Yes
Yes


Over power protection
Yes
Yes
Yes


100 % HiPot test
Yes
Yes
Yes


100 % Burn-in, high temperature cycled on/off
Yes
Yes
Yes


Safety compliance
CB, cUL, TUV, CCC, BSMI
CB, cUL, TUV, CCC, BSMI
CB, cUL, TUV






EMI/EMC compliance
CE, FCC, RCM
CE, FCC, RCM
CE, FCC, RCM



Specifications



SSP-300SUG



Specifications




Input frequency
50 / 60 Hz


Inrush current at cold start
100 A max.


Efficiency
80 PLUS Gold


Line regulation
± 1 % (typical)


Load regulation
± 5 % (typical)


Cross regulation
± 5 % (typical)


Ripple / noise
1 %


MTBF, full load @ 25 °C ambient (excl. DC fan)
> 100,000 hours


Active Power Factor Correction
99 % (typical)






DC Outputs




+3.3 V
+5 V
+12 V Combined
-12 V
+5 V sb
Total continuous power
Input Type


10 A
14 A
25 A
0.3 A
2 A
300 W
100–240 VAC


100 W
300 W
3.6 W
10 W

---
