Popis produktu

Pilový kotouč - průměr (mm): 305
Pilový kotouč - průměr vrtání (mm): 30
Počet zubů: 56
Rukojeť: ano
Funkce pokosu: ano
Funkce náklonu: ano
Laserové navádění: ne
Výkon (Watt): 1600
Napětí (V): 220 - 240
Typ: Kapovací a pokosová pila
Způsob provozu: Síť
Celková délka (mm): 780
Barva: zelená / stříbrná
Materiál: hliník
Šířka (cm): 78,0
Výška (cm): 65,7
Hloubka (cm): 50.0
Hmotnost (kg): 18,6

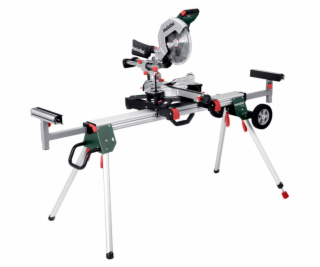

Metabo Set KGS 305 M mitre saw + KSU 401 machine frame

Features:


Corded mitre saw of the mobile class M
User-friendly and light
Precision Cut Line (PCL): exact shadow cut line without readjustment by cleverly placed LED
Powerful universal motor for high cutting performance
Rotating table with accurate and fast adjustment of common angles and locking points
Saw blade tilt on both sides up to 47°
Stable aluminium die-cast housing
Chip extraction via integrated chip catch funnel
Quick-clamping clamp for secure fixing of the workpiece
Depth stop for easy production of grooves
Ergonomic handle
Easy-to-read scales and visible controls


Scope of delivery:


Saw blade 305 x 30 Z56 / Precision cut wood
Two integrated table extensions
Crosscut stop
Material clamp
Tool for saw blade change
Cable winding
Chip collection bag
Machine frame KSU 401


Technical data:


Dimensions: 780 x 500 x 657 mm
Support surface: 345 x 770 mm
Max. cutting width 90°/45°: 305 / 215 mm
Max. cutting depth 90°/45°: 110 / 67 mm
Cutting capacity 90°/90°: 305 x 110 mm
Cutting capacity 45°/45°: 215 x 67 mm
Rotating table adjustment left/right: 50 / 60 °
Saw blade tilt left/right: 47 / 47 °
Saw blade: 305 x 30 mm
Rated input power: 1600 W
Rated input power S1 100%: 1600 W
Rated input power S6 20%: 2000 W
No-load speed: 3700 /min
Speed at rated load: 3000 /min
Cutting speed: 59 m/s
Weight: 18.6 kg
Cable length: 2 m
Sound pressure level: 87 dB(A)
Sound power level (LwA): 100 dB(A)
Measurement uncertainty K: 3 dB(A)

---
