Popis produktu

Vstupní frekvence (Hz): 50 - 60
Vstupní napětí (V): 100 - 240
Intenzita proudu (amper): 10
Zkrat (SCP): ano
Proudové špičky (OCP): ano
Přetížení (OVP): ano
Podpětí (UVP): ano
Přetížení (OPP): ano
El. impulzy (SIP): ano
Ventilátor (počet): 1
Způsob chlazení: aktivní
Průměr větráku (mm): 135
Typ PFC (Power Factor Correction): Aktiv-PFC
Síťový vypínač: ano
Vedení kabelů: není modulární
ATX-Mainboard: 1x 20+4pin
ATX12V: 2x 4+4pin
EPS12V: 1x 8pin
PCIe: 2x 6+2pin
PCIe 5.0 (12VHPWR): 1x
S-ATA: 4x
P-ATA / IDE: 2x
Výkon (Watt): 750
Form faktor: ATX
Verze ATX: 3.1
certifikace: 80PLUS Bronze
Účinnost při plné zátěži (%): 85
Barva: černá
Materiál: kov / plast
Šířka (mm): 150
Výška (mm): 86
Hloubka (mm): 150
Hmotnost (kg): 1,74

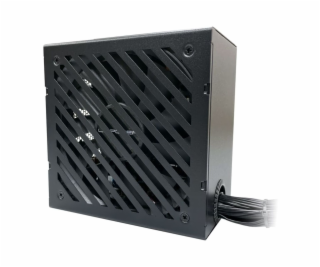

LC-Power LC6750B-SI V3.1, PC Power Supply, PCIe 5.1, 750 W

The LC6750-SI V3.1 is an 80 PLUS BRONZE certified ATX power supply that offers good performance and system stability. The power supply from the Integrator series provides a power output of 750 watts and is a reliable power solution for various applications. Equipped with a quiet 135 mm fan, it operates efficiently and provides powerful cooling. It is ideal for all mid-range systems.

It features a 20+4 pin motherboard connector that is compatible with most motherboards, as well as a 550 mm-4+4 pin motherboard 12V connector, a 750 mm-4+4 pin motherboard 12V connector, four SATA, and two PATA, offering stable power supply for high-performance CPUs, hard drives, and drives.
For graphics cards, it has two PCI-Express 6+2 pin connectors and a powerful PCI-Express 5.1 12V-2x6 12+4 pin connector, providing direct and reliable power supply for multiple GPUs.

Features:


ATX form factor, V 3.1
Power output: 750 W
Fan: 135 mm
Black flat cables
80 PLUS Bronze certified
Efficiency up to 85%
Six safety circuits
DC-to-DC technology
Powerful +12 V rail: 62.4 A
Connectors:

1x motherboard 20+44 pin, cable length: 550 mm
2x motherboard 4+4 pin 12V, 8-pin EPS, cable length: 1x 550 mm / 1x 700 mm
1x PCIe 5.1 / 12V, 12+4 pin, cable length: 1x 600 mm
2x PCIe 6+2 pin, cable length: 1x 550 / 1x 700 mm
4x SATA, cable length: 2x 450 mm / 2x 600 mm
2x PATA, cable length: 2x 750 mm


PFC: active
Input AC: 100 – 240 V
Output DC: 3.3 / 5 / 12 V (20 / 20 / 62.4 A)
Safety circuits: OCP (overcurrent protection), OPP (overpower protection), OVP (overvoltage protection), SCP (short circuit protection), SIP (inrush current protection), UVP (undervoltage protection)
Material: metal, plastic
Dimensions: 86 x 150 x 150 mm
Weight: approx. 1.85 kg
Color: black
