Popis produktu

Max. průměr frézování (mm): 80
Volnoběžné otáčky (min-1): 1750
Výkon (Watt): 1500
Typ: Milling Machine
Způsob provozu: Provoz v síti, 400 V
Barva: stříbrná / červená
Hmotnost (kg): 800,00

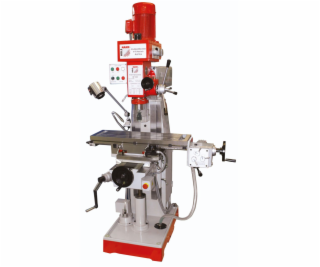

Holzmann BF500 400V milling machine

Features:


Heavy and vibration-absorbing cast design
Robust and swivelling (+90° -90°) vertical milling head with gear shift
Oil bath gears with ground, hardened gears
Left/ right rotation
Tapping up to M16 possible
Quill delivery via three-hand lever and fine adjustment
Massive and large cross table with 14 mm T-slots for fixing a vice or similar
X-axis automatic feed (370W, 24-720mm/U (8)) with
Speed adjustment via gear transmission
Automatic and adjustable end stop of the X-axis
Dovetail guides of the table adjustable by wedge bars
Including coolant device and halogen lamp


Technical data:


Voltage: 400V (400V connection required)
Power: 800 / 1500 watts
Table size: 1000 x 240 mm
Projection: 260 - 695 mm
Milling spindle mount: ISO 40
Milling spindle speed: 115 - 1750 rev/min
Head tilt: +/- 90°
Travel Z-axis: 400 mm
Travel Y-axis: 230 mm
Travel X-axis: 560 mm
Max distance spindle table: 350 mm
Maximum drilling capacity steel: 50 mm / (M16)
Maximum finger cutter diameter: 25 mm
Maximum face milling cutter diameter: 80 mm
T-slot size: 14 mm
Weight: 800 kg


Scope of delivery:


Feed X-axis
Coolant device
Collet set of 8 pieces (4, 5, 6, 8, 10, 12, 14, 16 mm)
Drill chuck 1-16mm (B18)
1xMK2 - 1xMK3 - 1xB18 recording
Machine vice 160mm
Halogen lamp
Tightening spindle M16


Please note:
Electrical connection work / installations may only be carried out by qualified specialists.

---
