Popis produktu

Typ: Spouštěcí automatika sacích zařízení
Zdroj napájení: Síť
Barva: černá / červená
Šířka (cm): 19,5
Výška (cm): 6,5
Hloubka (cm): 8.0
Hmotnost (kg): 0,93

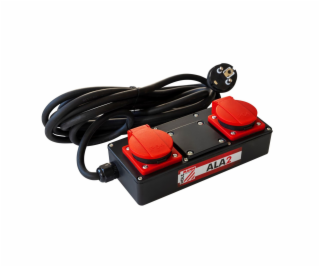

Holzmann ALA2 230V automatic start-up for extraction unit

With the HOLZMANN automatic start-up system for extraction units, your extraction unit can be switched on and off automatically once the woodworking machine has been activated (both on a 230 V basis). Connect the woodworking machine and the extraction unit to the automatic start-up and you are ready to go. (The prerequisites for the extraction system should be checked beforehand to ensure smooth operation).

Features:


A processing machine can be connected to the automatic start-up system
After switching on the working machine (master), the second connected machine, e.g. extraction unit (slave), is enabled after 2-4 seconds
After switching off the working machine, the second machine is also switched off after 3-4 seconds
Automatic start-up for 2 230V machines
Max. Rated power 3680 W (16A)
Connection cable H07RN-F 3G1.5mm2 with 4 m length
Master-slave socket with switch-on / switch-off delay of 2 - 4 seconds


Technical data


Voltage: 230 V / 50 Hz
Cable length: 4 m
Protection class: IP44
Installation dimensions: 195 x 80 x 65 mm
Extraction system slave Switching delay: 2 - 4 s
Mains input: 230 V
Weight: approx. 0.93 kg

---
