Popis produktu

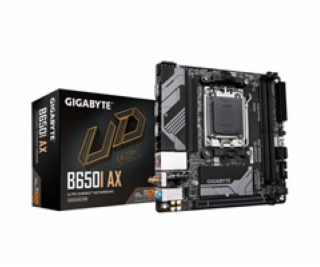

GIGABYTE B650I AX AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors Unparalleled Performance:5+2+1 Phases Digital VRM Solution Dual Channel DDR5:2*SMD DIMMs with AMD EXPO™ & Intel XMP Memory Module Support SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector EZ-Latch:PCIe x16 Slot with Quick Release Design Fast Networks:Wi-Fi 6E 802.11ax & 2.5GbE LAN Extended Connectivity:DP, HDMI Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card CPU AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors (Please refer CPU Support List for more information.) Chipset AMD B650 Memory Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to Memory Support List for more information.) Onboard Graphics Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless LAN Realtek Wi-Fi 6E RTL8852CE WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) Chipset: 2 x SATA 6Gb/s connectors RAID 0 and RAID 1 support for NVMe SSD storage devices RAID 0 and RAID 1 support for SATA storage devices USB CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 1 x USB 2.0/1.1 port on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper 1 x chassis intrusion header Back Panel Connectors 1 x DisplayPort 1 x HDMI port 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB 3.2 Gen 1 port 3 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks I/O Controller iTE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm

---

Našli ste v tomto popise chybu? Prosím kontakujte nás na email: info@mader.sk
Rada výrobcov si vyhradzuje právo na zmenu niektorých parametrov, či vlastností bez predchadzajúceho upozornenia.
