Popis produktu

Displej: LCD
vypínací automatika: ano
Napětí (V): 0,6 - 1000
Typ měření: True RMS
Typ: Multimetr
Barva: černá / fialová

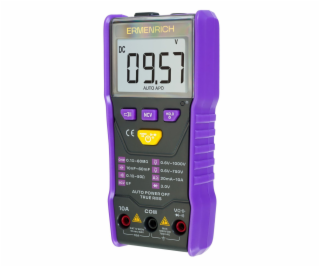

Ermenrich Zing TC20 digital multimeter

The Ermenrich Zing TC20 digital multimeter is a portable device for measuring DC and AC voltage, DC and AC current, resistance and capacitance. It has no rotary switch, that is the measuring limit is set automatically. The device is protected against overloads, it is reliable and stable and offers a high measurement accuracy. It is particularly suitable for radio enthusiasts, do-it-yourselfers and professional electricians.

In the cable tracking mode, it checks the continuity of the circuit - the device detects an open or short-circuited circuit. The diode test is used for testing diodes by measuring the voltage drop through the diodes. The device uses the True RMS method. That is, the measurements are based on the True RMS formula, which improves the accuracy of the results when measuring AC voltage and AC current. Additional functions include a hold function, non-contact voltage detection (NCV) and a flashlight.

The device is powered by 2x AAA batteries (not included).

Features:


Without rotary switch, the measuring limit is set automatically
DC / AC voltage measurement, DC / AC current measurement, resistance, capacitance
Cable tracking mode, diode test, NCV test
True RMS method, which improves the accuracy of AC and AC voltage measurements


Technical data:


Selection of the measuring limit: automatic
Basic functions: voltmeter, ammeter, ohmmeter, capacitance meter
Measuring range DC voltage: 0.6 - 1000 V
Measuring limit DC voltage: 6 / 60 / 600 V: error  (0.5 % +3), resolution 0.001/0.01/0.1 V, 1000 V: error  (0.8 % +10), resolution 1 V
Measuring range AC voltage: 0.6 - 750 V
Measuring limit AC voltage: 6 / 60 / 600 V: error  (0.5 % +3), resolution 0,001/0,01/0,1 V, 750 V: error  (0.8 % +10), resolution 1 V
Measuring range DC current: 20 mA - 10 A
Measuring limit DC current: 6 / 10 A: error (2.0 % +30), resolution 0.001/0.01 A
Measuring range AC current: 20 mA - 10 A
Measuring limit AC current: 6 / 10 A: error  (2.0 % +30), resolution 0.001/0.01 A
Resistance measurement range: 0.1 ohm - 60 MOhm
Resistance measurement limit: 600 ohms: error  (0.8 % +5), resolution 0.1 ohm, 6 kOhm/60 kOhm/600 kOhm/6 MOhm: error  (0.8 % +3), resolution 1 ohm/10 ohm/100 ohm/1 kOhm, 60 MOhm: error  (2.5 % +3), resolution 10 kOhm
Measuring limit capacitance 10 nF/100 nF/1 µF/10 µF/100 µF/1 mF/10 mF: error  (3.5 %+20), resolution 10 pF/100 pF/1n F/10 nF/100 nF/1 µF/10 µF, 60 mF: error  (5 %+3), resolution 100 µF
Measurements per second: 3
cable allocation
Diode test
Contactless voltage detection (NCV)
True RMS
Retain function
Overvoltage categoryIV-Cat
Display: LCD
Display resolution: 5999
Display sign: 3 5 / 6
Display backlight
Flashing light
Temperature range: 0... + 40°C
Power supply: 2x AAA batteries (not included)
Low battery indicator
Automatic shutdown
Colour: black / purple

---
