Popis produktu

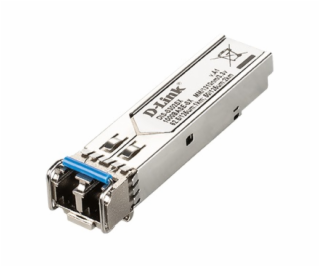

Průmyslový 1000Base-SX Multi-Mode 2km SFP transceiver DIS-S302SX

1000Base-SX optický Mini-GBIC SFP transceiver pro mnohovidové (Multi-Mode, MM) vlákno
Rychlost 1,25 Gb/s Gigabit Ethernet
Vlnová délka 1310nm
Dual LC konektor
Dosah 1km pro 62,5/125um a 2km pro 50/125um MM vlákno
Provozní teploty od -40°C do +85°C

Features

Hot Pluggable
MSA Compliant
RoHS Compliant
Standard

Compliant Standard

IEEE802.3z
1000BASE-SX
Transceiver Type

SFP
Fiber Media support

Multi-Mode
Distance

Max. Distance or other supported cable type
62.5/125um fiber: 1km
50/125um fiber: 2km
62.5/125um OM1 1km
50/125um OM2 1km
50/125um OM3 2km
50/125um OM4 2km
Speed

1.25Gbps
Interface

Connector

Duplex LC Connector
Direction

Single-direction
Wavelength

1310 nm
Output Optical Power (TX Optical Power)

Max. (dBm) -3dBm
Min. (dBm) -9dBm
Input Optical Power (RX Optical Power)

Max. (dBm) -3dBm
Min. (dBm) -22dBm
Sensitivity (dBm)

-22dBm
Cable Type

Multi-mode 50/125um or 62.5/125um fiber
Operating

Power (V)

3.3V
Max Input Current (mA)

300mA
Power Budget (MIN Power Budget) (dB)

13dB
MAX Power Budget (dB)

19dB
Heat Generated (kJ/h)

2.376 kJ/h
MTBF (hours)

224,167 hours
Physical & Environment

Operation Temperature (°C)

-40-85°C
Storage Temperature (°C)

-40-85°C
Operating Humidity (%)

5% ~ 95%
Storage Humidity (%)

5% ~ 95%
Dimension ( W x D x H)

13.7mm x 55.4mm x 8.5mm
Weight

20g
Bail latch colour

Blue
Certifications

Emission (EMI)

FCC Class B
CE Class B
VCCI Class B
Safety

LVD
EN 60825-1

---
