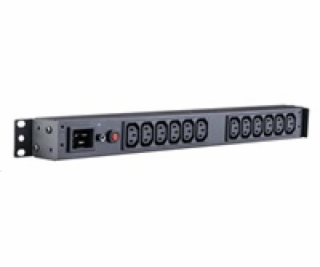

The CyberPower 12-outlet (12 Rear) rack mount basic power distribution unit (PDU20BHVIEC12R) provides 208V/230V 20A output. It distributes power to 12 IEC-320 C13 receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A Two-year warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.

Specifikace
Input
Voltage 200V / 230V
Frequency 20A max (derated to 16A)
Maximum Input Current 50Hz/60Hz
Plug Type IEC-320 C20
Plug Style Straight
Cord Length 3.05 M

Output
Nominal Output Voltage 200V - 240V
Overload Protection 16A
Outlets - Total 12
Outlets - Front 0
Outlets - Rear 12
Outlet Type IEC-320 C13

Physical
Dimensions (HxWxD) mm 445 x 44x 38
Rack Size 1U
Weight (kg) 2
Style Rackmount, Vertical Rackmount, Under-Counter
Form Factors Supported 1U rackmount, 0U vertical rackmount, undercounter installation supported
Cord Retention Tray/Cord Organizers Yes
Adjustable Mounting Brackets 2 sets(L-short/L-long)
External Site Ground Pin Yes

Environmental
Operating Temperature 0°C to 35°C
Operating Humidity 0% - 95% non-condensing
Storage Temperature -15°C to 45°C
Maximum Operating Elevation 3,000 m
Maximum Storage Elevation 15,000 m

Certifications
Certifications UL60950_1 , CSA C22.2, CE
ROHS ROHS Compliant

---
