Popis produktu

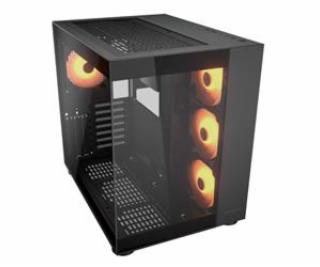

FV150 RGB
Build Visibility and Hardware Management, Perfectly Balanced
The dual-chamber design of the FV150 RGB aligns aesthetics with functionality: the glass panels of one chamber are perfect for a clean view of your build while cables, storage and PSU are discreetly hidden in a second chamber. A bottom fan bracket lets you secure fans to the bracket prior to installation, allowing for a completely stress-free setup. GPU and ATX motherboard compatibility offers unlimited flexibility for multiple build configurations.

Dual chamber design lets you show off your build while hiding cables, storage drives, and PSU.
Supports up to 400mm GPUs and vertical GPU orientation.
Supports Mini-ITX, Micro-ATX, ATX motherboards.
Engineered bottom fan bracket allows you to attach fans prior to installation.

Dual Chamber
Display your build with pride in the primary glass chamber while concealing hardware within the secondary chamber for a clean look.

Easy Fan Installation
We’ve prioritized user convenience with an engineered bottom fan bracket that lets you attach your fans directly to the bracket before installation, saving you time and effort during setup.

Cooling Capacity
The FV150 RGB has a capacity of 3 x 120mm or 2x140mm on the top and bottom, 3x120mm fans on the side, and 1 x120mm on the rear. (ARGB side and rear fans in addition to fan hub are preinstalled.) Water cooling support maxes out at 360mm on top and 240mm on the side.

Versatile GPU Options
With up to 400mm GPU clearance and support for vertical orientation, the FV150 RGB fully accommodates high-performance components for modern gaming.

Flexibility Across The Board
The FV150 RGB is compatible with Mini-ITX, Micro-ATX, and ATX motherboards, offering flexibility for various build configurations.

Seamless RGB Synchronization
The integrated universal fan hub ensures seamless synchronization of the fan RGB lighting.

Peripheral Vision
The FV150 RGB’s I/O panel includes 2 x USB Type-A and 1 x USB 3.2 Type-C ports.

Full House
The FV150 RGB can house up to 1 x 3.5” HDD and 2 x 2.5” SSD drives or 1 x 2.5” SSD and 2 x 3.5” HDD drives.

Protection Detail
Dust covers on the three ventilated sides effectively prevent dust from entering, keeping your components clean. The top and right side filters attach magnetically, facilitating easy removal and maintenance.

Product Name FV150 RGB / FV150 RGB (White) / FV150 RGB (Pink)
Case Form Factor Mid Tower
Motherboard Type Mini ITX / Micro ATX / ATX

Dimensions (WxHxD)
300 x 400 x 415 (mm)
11.8 x 15.7 x 16.3 (in)

I/O Panel USB 3.2 Gen 2 Type-C x 1, USB-A 3.0 x 2, 4 Pole Headset Audio Jack, RGB Button
3.5 Drive Bay 2
2.5 Drive Bay 1+1 (converted from 3.5 drive bays)
Expansion Slots 7+3
Vertical GPU Support Yes

Cooling Fan Support
Top 120mm x 3 / 140mm x 2
M/B Side 120mm x 3 / 140mm x 2
Bottom 120mm x 3
Rear 120mm x 1

Pre-installed Fans
M/B Side 120mm Reversed ARGB fan x 3
Rear 120mm ARGB fan x 1
Speed 1000 (±10%) RPM
Connector 5V 3 Pin (ARGB) / 3 Pin (Fan)
Maximun Number of Fans 10

Water Cooling Support
Top 360mm / 280mm / 240mm
M/B Side 240mm / 120mm
Rear 120mm
RGB Hub Sync with M/B Yes
Max. Graphics Card Length 400 (mm) / 15.7 (in)
Max. CPU Cooler Height 180 (mm) / 7.1 (in)
Max. PSU Length 210 (mm) / 8.3 (in)

---
