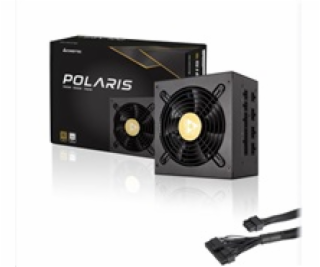

PPS-650FC

80 PLUS Gold certified efficiency
Fully modular cable management
High power density design for compact size
LLC half-bridge converter with DC-to-DC technology

The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size.
With the size of only 140mm in length and fully modular cable management, the Polaris Series is easy to install in any system for standard ATX PSU. Cable lengths of 650mm ensure that these power-supplies can be used even in large builds. Whether a small PSU housing for compact system is needed or longer cables for large systems, the Polaris Series can be trusted to do the job with top performance and efficiency.
TECHNICAL SPECIFICATIONS



PERFORMANCE



Model
Polaris 650W


Article no.
PPS-650FC


EAN code
0753263076434


Weight (without/with package)
2.175 kg / 2.480 kg


AC Input
100-240V / 10A


Frequency
50-60Hz


+5V
22A


+3,3V
22A


+5V & +3,3V combined
120W


+12V 1
54.2A / 650W


+12V 2
-


+12V 1 & +12V 2 combined
-


P.F.
>0,9


-12V
0,3A / 3,6W


+5VsB
3.0A / 15W


Maximum Power
650W






CONNECTORS



20+4PIN ATX
1


8 PIN EPS (4+4)
2


8 PIN PCIe (6+2)
4


SATA
6


MOLEX
3


FLOPPY
1






CABLE LENGHT



20+4PIN ATX
650


8 PIN EPS (4+4)
650/150


8 PIN PCIe (6+2)
2x 500/150


SATA
2x 450/150/150


MOLEX
450/150/150/150


FLOPPY
Molex






FEATURES



Specification
ATX 12V 2.4


Form factor
PS II


Efficiency
80 PLUS Gold


Dimension (DxWxH)
140mm x 150mm x 87mm


Fan
120mm silent fan


Security
AFC (Automatic Fanspeed Control) OCP (Overcurrent protection) OPP (Overload protection) OTP (Over Temperature protection) OVP (Overvoltage protection) SCP (Short-circuit protection) SIP (Surge & Inrush Protection) OCP (Overcurrent protection) UVP (Undervoltage protection)


Warranty
24 Months

---
