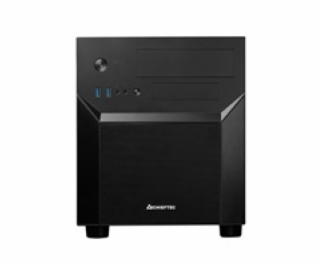

Mesh Series | C I-02B-OP
The CI-02B-OP joins CHIEFTEC’s Mesh Series in a compact m-ATX cube format. Despite its very compact dimensions, this case is extremely exible in terms of hardware compatibility, supporting ATX PSU’s up to 16cm in length, graphics cards up to 320mm in length and CPU coolers up to 160mm in height. Additionally, with lots of exibility on the internal and external drives, supporting 5.25” and 3.5” optical drives, 2x 3.5” HDD”s and 3x 2.5” SSD’s, the CI-02B-OP is also very suitable for home entertainment purposes or as a mini server. Featuring an elegant design combining brushed aluminium and airow-friendly mesh, this is a case has a timeless look that will t in easily in the workplace or at home and is therefore truly multi-functional.

Highly exible optical drives, internal drives and fan congurations
Elegant design combining brushed aluminum and mesh features
Compact space saving dimensions
Innovative fold-open mechanism for easy installation


TECHNICAL SPECIFICATIONS



Model
CI-02B-OP


Color
Black


Material
0.6 mm SPCC


Motherboard support
Mini ITX, mATX


Dimensions (D x W x H)
390 x 265 x 295 mm (Stand + 22mm)


Weight (Net/Gross)
4.3 kg / 5.2 kg


Drive bay external
1 x 5.25” and 1 x 3.5”


Drive bay internal
2 x 3.5” and 3 x 2.5”


Power supply
ATX PSU (optional, up to 160 mm length)


Front I/O
2x USB3.1 Gen 1, Audio-out (AZALIA / HD-Audio), Mic-In


Scope of delivery
Screw set, removable dust lter bottom, magnetic dust lter on top


Expancion slots
4


Cooling (optional)
Front: 1x 120mm or 1x 140mm fan Rear: 1x 120mm fan Top: 1x 120mm or 1x 140mm fan


CPU cooler height (max.)
160 mm


VGA card length (max.)
320 mm


Warranty
24 months

---
