Popis produktu

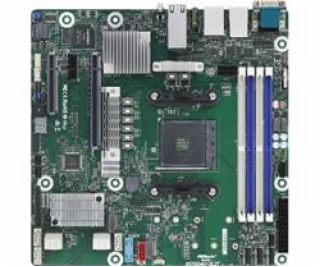

X570D4U-2L2T/BCM






Micro-ATX (9.6"x 9.6")
Supports AMD Ryzen™ 5000 Series Desktop Processors
4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM
1 PCIe4.0 x16, 1 PCIe4.0 x8, 1 PCIe4.0 x1
Supports 2 M.2 (PCIe4.0 x4 or SATA 6Gb/s)
8 SATA 6Gb/s
2 RJ45 (10GbE) by Broadcom BCM57416
2 RJ45 (1GbE) by Intel ®  i210
HDMI
Remote management (IPMI)




Specifications




 Physical Status


Form Factor
Micro-ATX


Dimensions
9.6"x9.6" (244mmx 244mm)


 Processor System


CPU
Supports:
AMD Ryzen™ 5000, 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics
AMD Ryzen™ 5000 and 3000 Series Desktop Processors
AMD Ryzen™ PRO 5000, 4000 and 3000 Series Desktop Processors


Socket
Single Socket AM4 (PGA1331)


Thermal Design Power
105W


Chipset
AMD X570


 System Memory


Supported DIMM Quantity
4 DIMM slots (2DPC)


Supported Type
Supports DDR4 288-pin ECC * /non-ECC UDIMM
* For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies.


Max. Capacity per DIMM
up to 32GB


Max. DIMM Frequency
up to 3200 MHz *
*  AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics support up to 2666 MHz


Voltage
1.2V


 PCIe Expansion Slots (SLOT7 close to CPU)


PCIe x 16
SLOT6: PCIe x16 (PCIe 4.0 x16) *  [CPU], auto switch to x8 when SLOT4 is occupied
* Supports PCIe3.0 x8 when using AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics
* Supports PCIe3.0 x16 when using AMD Ryzen™ 5000, 4000 G-Series Desktop Processors with Radeon™ Graphics


PCIe x 8
SLOT4: Open-end PCIe x8 (PCIe 4.0 x8) *  [CPU]
* Disabled when using AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics
* Supports PCIe3.0 x8 when using AMD Ryzen™ 5000, 4000 G-Series Desktop Processors with Radeon™ Graphics


PCIe x 1
SLOT5: PCIe4.0 *  x1 [FCH]  * Supports PCIe3.0 when using AMD Ryzen™ 5000, 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics


 Other PCIe Expansion Connectors


M.2 slot
1 M-key (PCIe4.0 *  x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU]
1 M-key (PCIe4.0 *  x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [FCH]
* Supports PCIe3.0 when using AMD Ryzen™ 5000, 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics


 SATA/SAS Storage


PCH Built-in Storage
AMD X570:
8 SATA 7-pin connectors, including 1 support SATA DOM


 Ethernet


Additional GbE Controller
2 RJ45 (10GbE) by Broadcom BCM57416
2 RJ45 (1GbE) by Intel ®  i210


 Server Management


BMC Controller
ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0


IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN


 Graphics


Controller
ASPEED AST2500:
1 DB15, 1 (15-pin) header
AMD Ryzen™ Processors with Radeon™ Graphics:
1 HDMI


 Rear I/O


UID Button/LED
1 UID button w/ LED


VGA Port
1 DB15 (VGA), 1 HDMI


Serial Port
1 DB9 (COM)


USB 3.2 Gen2 Port
2 Type-A (USB3.2 Gen2)


RJ45
2 RJ45 (10GbE), 2 RJ45(1GbE), 1 dedicated IPMI


 Internal Connector/Headers


Power Connector
1 (24-pin, ATX main power), 1 (8-pin, ATX 12V)


Auxiliary Panel Header
1 (18-pin): chassis intrusion, location button & LED, front LAN LED, system fault, and BMC alert


System Panel
1 (9-pin): RST, PWRBTN, HDDLED, PWRLED


VGA header
1


Speaker Header
1


Buzzer
1


Fan Header
3 (6-pin), 3 (4-pin)


Thermal Sensor Header
1


TPM Header
1 (17-pin, LPC), 1 (13-pin, SPI)


SMBus header
1


PMBus header
1


IPMB Header
1


Clear CMOS
1 (contact pads)


Front Lan LED Connector
1


USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)


 LED Indicators


Standby PWR LED 5vsb
1 (5VSB)


80 Debug Port LED
1


Fan Fail LED
6


BMC heartbeat LED
1


 System BIOS


BIOS Type
32MB AMI UEFI Legal BIOS


BIOS Features
Plug and Play, ACPI 6.2 compliance wake up events, SMBIOS 3.30, ASRock Rack instant flash


 Hardware Monitor


Temperature
CPU, X570, TR1, DDR, MB, Card Side, LAN Temperature sensing


Fan
Fan Tachomete
Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control


Voltage
3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, PM VDD CLDO, PM VDDCR S5, PM VDDCR, BAT, 3V, 5V, 12V, BCM_VDD1P8, BCM_V10PHYDIG


 Environment


Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C


Humidity
Non operation humidity: 20% ~ 90% ( Non condensing)




The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

---
