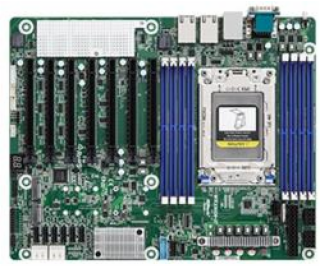

WRX80D8-2T






ATX (12" x 9.6")
Supports AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX
8 DIMM slots (1DPC), supports ECC/non-ECC UDIMM, RDIMM, LRDIMM, RDIMM-3DS
7 PCIe4.0 x16
2 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s)
Supports 2 M.2 (PCIe4.0 x4)
12 SATA 6Gb/s
2 RJ45 (10GbE) by Intel ®  X710-AT2
Remote Management (IPMI)


Specifications




 Physical Status


Form Factor
ATX


Dimensions
12" x 9.6" (305 mm x 244 mm)


 Processor System


CPU
Supports AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX


Socket
Single Socket sWRX8 (LGA4094)


Chipset
AMD WRX80


 System Memory


Supported DIMM Quantity
8 DIMM slots (1DPC)


Supported Type
Supports DDR4 288-pin ECC/non-ECC UDIMM, RDIMM, LRDIMM, RDIMM-3DS


Max. Capacity per DIMM
ECC/non-ECC UDIMM, RDIMM, LRDIMM: up to 128GB
RDIMM-3DS * : up to 256GB
* RDIMM-3DS Max. memory capacity is to be validated


Max. DIMM Frequency
ECC/non-ECC UDIMM, RDIMM, LRDIMM, RDIMM-3DS * : max. 3200MHz
* RDIMM-3DS Max. memory frequency is to be validated


Voltage
1.2V


 PCIe Expansion Slots (SLOT7 close to CPU)


PCIe x 16
SLOT7: PCIe4.0 x16 [CPU]
SLOT6: PCIe4.0 x16 [CPU]
SLOT5: PCIe4.0 x16 [CPU]
SLOT4: PCIe4.0 x16 [CPU]
SLOT3: PCIe4.0 x16 [CPU]
SLOT2: PCIe4.0 x16 [CPU]
SLOT1: PCIe4.0 x16 [CPU]


 Other PCIe Expansion Connectors


M.2 slot
2 M-key (PCIe4.0 x4), supports 22110/2280/2260/2242/2230 form factor [FCH]


OCuLink
2 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [FCH]


 SATA/SAS Storage


PCH Built-in Storage
AMD WRX80 (12 SATA 6Gb/s):
2 OCuLink, 4 SATA 7-pin


 Ethernet


Additional GbE Controller
Intel ®  X710-AT2: 2 RJ45 (10GbE)


 Server Management


BMC Controller
ASPEED AST2500


IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN


 Graphics


Controller
ASPEED AST2500


VRAM
DDR4 512MB


 Rear I/O


UID Button/LED
1


VGA Port
1 DB15


Serial Port
1 DB9


USB 3.2 Gen1 Port
2 Type-A (USB3.2 Gen1)


RJ45
2 RJ45 (10GbE)
1 dedicated IPMI


 Internal Connector/Headers


Power Connector
1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)


Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus


System Panel
1 (9-pin): RSTBTN, PWRBTN, HDDLED, PWRLED


Speaker Header
1 (4-pin)


Fan Header
7 (6-pin)


Thermal Sensor Header
2


TPM Header
1 (13-pin, SPI), 1 (17-pin, LPC)


HSBP
1


SMBus header
1


PMBus header
1


IPMB Header
1


Clear CMOS
1 (contact pads)


USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)


USB 3.2 (Gen2) Header
1 (Type-C, 1 USB3.2 Gen2)


NMI Header
1


 LED Indicators


Standby PWR LED 5vsb
1


80 Debug Port LED
1


Fan Fail LED
7


BMC heartbeat LED
1


 System BIOS


BIOS Type
AMI 256 Mb SPI Flash ROM


BIOS Features
Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0, ASRock Rack Instant Flash


 Hardware Monitor


Temperature
CPU, DRAM, MB, Card Side, Chipset Temperature Sensing


Fan
CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control


Voltage
3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, 1.05V_PROM_S5, 2.5V_PROM, 1.05V_PROM_RUN, BAT, 3V, 5V, 12V


 Environment


Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C


Humidity
Non operation humidity: 20% ~ 90% ( Non condensing)




The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

---
