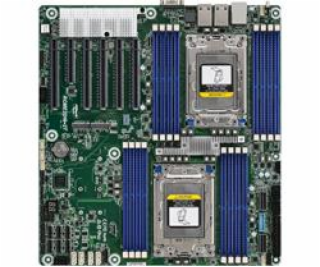

Specifications




 Physical Status


Form Factor
EEB


Dimensions
12" x 13" (305mm x 330mm)


 Processor System


CPU
Support Dual AMD EPYC™ 7003 *  and 7002 Series Processors

* A BIOS update is required to support AMD EPYC™ 7003 Series Processors.


Socket
1+1 SP3 (LGA4094)


Power Design
280 W


Chipset
System on Chip


 System Memory


Capacity
8+8 DIMM (1DPC)


Type
DDR4 288-pin RDIMM, LRDIMM, NVDIMM


DIMM Size Per DIMM
RDIMM: up to 64GB, LRDIMM: up to 256GB, NVDIMM: up to 32GB


DIMM Frequency
RDIMM/ LRDIMM: up to 3200 MHz
NVDIMM: up to 2666 MHz


Voltage
1.2V


 Expansion Slot


PCIe x 16
- SLOT6: PCIe x16 (PCIe 4.0 x16) [CPU1]
- SLOT5: PCIe x16 (PCIe 4.0 x16) [CPU0]
- SLOT4: PCIe x16 (PCIe 4.0 x16) [CPU1]
- SLOT3: PCIe x16 (PCIe 4.0 x16) [CPU0]
- SLOT1: PCIe x16 (PCIe 4.0 x16) [CPU0]


PCIe x 8
- SLOT2: PCIe x8 (PCIe 4.0 x8) [CPU1]


M.2
1 M-key (PCIe4.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor [CPU0]
1 M-key (PCIe4.0 x4), supports 22110/2280/2242 form factor [CPU0]


 Storage


SATA Controller
AMD EPYC™ 7003 and 7002:
8 from SlimSAS connector * , 4 from Ocuink connector, 1 SATA M.2 module [CPU0]
4 SATA 7-pin, 8 from SlimSAS connector, 4 from Ocuink connector [CPU1]


Slimline for U.2
2 SlimSAS (PCIe4.0 x8 or 8 SATA 6Gb/s) [CPU0, CPU1] *
* SlimSAS from CPU0 support PCIe only while installing 2 processors


OCuLink for U.2
2 Oculink (PCIe4.0 x4 or 4 SATA 6Gb/s) [CPU0,CPU1]


 Ethernet


Additional GbE Controller
1 IntelX550-AT2:
2 RJ45 (10 GbE)


 Management


BMC Controller
ASPEED AST2500: IPMI2.0 with iKVM and vMedia support


 Graphics


Controller
ASPEED AST2500:
1 DB15


 Rear Panel I/O


VGA Port
1 DB15(VGA)


USB 3.2 Gen1 Port
2 Type A


Lan Port
2 RJ45 (10GbE)


Dedicate LAN
1 dedicated IPMI


UID Button/UID LED
1


 Internal Connector


COM Header
1


Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus


TPM Header
1 (17-pin, LPC), 1 (13-pin, SPI)


IPMB Header
1


VGA Header
1


PMBus CONN
1


Fan Header
8 (6-pin)


USB 3.2 (Gen1) Header
2 via 19-pin header


NMI Header
1


System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED


BMC_SMB Header
2


SGPIO Header
4


CPU HSBP
1


Power Connector
1 (24-pin, ATX main power), 3 (8-pin, ATX 12V)


Clear CMOS
contact pads


 Onboard LED


Standby PWR LED 5vsb
1


80 Debug Port LED
1


Fan Fail LED
8


 System BIOS


BIOS Type
32MB AMI UEFI Legal BIOS


BIOS Features
Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0, ASRock Rack Instant Flash


 Hardware Monitor


Temperature
CPU, MB, Card side, X550 Temperature Sensing


Fan
Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control


Voltage
Vsoc,Vcpu, VCCM, VPPM, +1.8V, +3V,+5V, +12V, BAT, +1.8VSB, +3VSB, +5VSB


 Support OS


OS
Microsoft ®  Windows:
- Server 2016 (64bit)
- Server 2019 (64bit)

Linux:

- RedHat Enterprise Linux Server 8.2 (64bit) / 7.9 (64bit)
- CentOs 8.2 ( 64 bit) / 7.9 ( 64 bit)
- SUSE SLES 15.2(64 bit) / 12.5(64bit)
- UBuntu 20.04.1 (64 bit) /18.04.5 (64 bit) / 16.04.7 (64 bit)

Hypervisor:
- VMWare ®  ESXi 6.7 u3 / 7.0 u1
- vSphere 6.7 u3 / 7.0 u1
- CITRIX Hypervisor 8.1.0

* Please refer to our website for the latest OS support list.


 Environment


Temperature
Operation temperature: 10°C ~ 35°CNon operation temperature: -40°C ~ 70°C




The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

---
